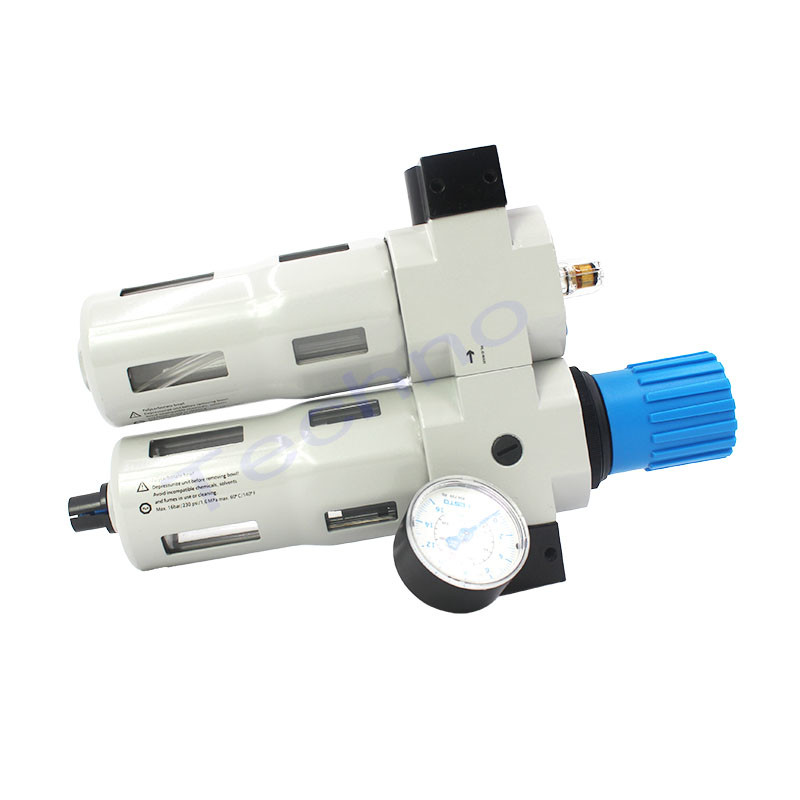

FESTO FRC-1-D-7-MAXI Threaded Pneumatic Filter Regulator Lubricator 40 ΜM Grade Filtration
Product Description:
The Pneumatic Filter Regulator Lubricator is a powerful and reliable air filter regulating device, designed to provide optimal performance and efficiency. Crafted from robust stainless steel, this pneumatic filter lubricator regulator is built to last and offers superior air filtration and pressure regulation. With a power of 3W, it has a flow rate of 650 to 8,200 liters per minute, and its filter element can capture particles as small as 5 microns. This air filter lubricator regulator ensures a clean and dust-free environment, and it is ideal for a wide range of industrial and commercial applications.
Technical Parameters:
General technical data
Size | Mini | Midi | Maxi |
| Pneumatic connection 1, 2 | G1/8 | G1/4 | G1/4 | G3/8 | G1/2 | G1/2 | G3/4 |
| Type of mounting | With accessories |
| In-line installation |
| Mounting position | Vertical ±5° |
| Grade of filtration [μm] | 40 |
| Air purity class at the output | Compressed air to ISO 8573-1:2010 [7:4:–] |
| Inert gases |
| Bowl guard | Metal bowl guard |
| Condensate drain | Manual |
| Fully automatic |
| Actuator lock | Rotary knob with latch |
| Pressure regulation range [bar] | 0.5 ... 12 (0.05 ... 1.2 MPa) |
| Max. pressure hysteresis [bar] | 0.15
(0.015 MPa) | 0.2
(0.02 MPa) | 0.25 (0.025 MPa) | 0.2
(0.02 MPa) | 0.3
(0.03 MPa) | 0.1
(0.01 MPa) | 0.2
(0.02 MPa) |
| Pressure indicator | With pressure gauge |
| Max. condensate volume [cm^{3} ] | 22 | 43 | 80 (43)^1) |
Operating and environmental conditions
Condensate drain | Manual | Fully automatic |
| Operating pressure [bar] | 1 ... 16 (0.1 ... 1.6 MPa) | 2 ... 12 (0.2 ... 1.2 MPa) |
| Operating medium | Compressed air to ISO 8573-1:2010 [–:–:–] |
| | Inert gases |
| Ambient temperature [°C] | –10 ... +60 |
| Temperature of medium [°C] | –10 ... +60 |
| Corrosion resistance class CRC^{1)} | 2 |
Applications:
Pneumatic Filter Regulator Lubricator of Festo FRC-1-D-7-MAXI is a high-quality product that has passed the CE Certification. With a Minimum Order Quantity of 1, it comes in Carton Packaging and has a Delivery Time of 1-7Work Days. Payment can be made through T/T, Western Union,Paypal. It has a Supply Ability of 5000PCs per month. The Filtration Grade is 40 μm and the Flow Rate is from 650~8,200 L/min. The Connection Type is Threaded. It is a perfect choice for various pneumatic filter regulator lubricator applications.
Support and Services:
Technical Support and Service for Pneumatic Filter Regulator Lubricator
We provide technical support and services for pneumatic filter regulator lubricator. Our technicians are experienced in troubleshooting, installation, maintenance, and repair of these products. We ensure that the equipment is running smoothly and efficiently while providing professional technical support. We also provide preventive maintenance services that can help to detect and fix potential problems before they become major issues. In addition, we offer spare parts and accessories to ensure that the equipment is running optimally.
Our technical support team is available 24/7 for any inquiries or problems related to pneumatic filter regulator lubricator. We also provide training and consultation services to help our clients use the equipment safely and effectively. Our goal is to ensure that our clients enjoy maximum value from the product.
Packing and Shipping:
This product is packaged and shipped using the following methods:
- The product is securely packaged in bubble wrap and placed in a cardboard box.
- The box is labeled with the product name and shipping address.
- The product is then shipped via ground, air, or sea depending on the customer’s preference.
FAQ:
Q1: What is the Brand Name of this product?
A1: The Brand Name of this product is Festo.
Q2: What is the Model Number of this product?
A2: The Model Number of this product is FRC-1-D-7-MAXI .
Q3: Where is this product from?
A3: This product comes from China.
Q4: What is the Certification of this product?
A4: This product has CE Certification.
Q5: What is the Minimum Order Quantity of this product?
A5: The Minimum Order Quantity of this product is 1.
